Wiring of connector

posted by Keith Saunders

04-15-2010

Downloads: 397

File size: 82kB

Filed under: Beocom6000

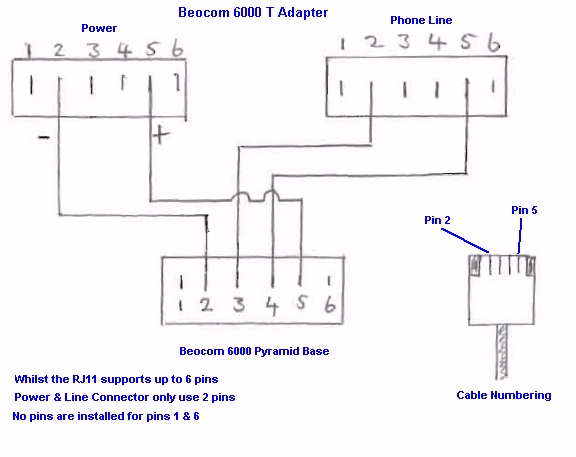

This shows the wiring of the power supply and the phone line coming in, with the output going to the Beo6000 base.
